Implicit-to-Mesh Conversion

Implicit-to-mesh conversion is a core step for bringing implicit modeling results into practical engineering workflows. The goal is to generate clean triangular meshes from field-based geometry while preserving surface detail, sharp transitions, and stable topology for later manufacturing, simulation, or geometry-processing operations.

This project demonstrates a node-based workflow for converting implicit structures into triangular mesh data. The example combines field construction, BRep/FRep conversion, sampling, and triangulation to produce a detailed mesh result from an implicit model.

Algorithm Focus

The workflow focuses on practical robustness rather than only visual reconstruction quality. Important concerns include sampling resolution control, feature preservation, mesh density management, topology stability, and producing data that remains useful for later mesh processing.

Engineering Workflow

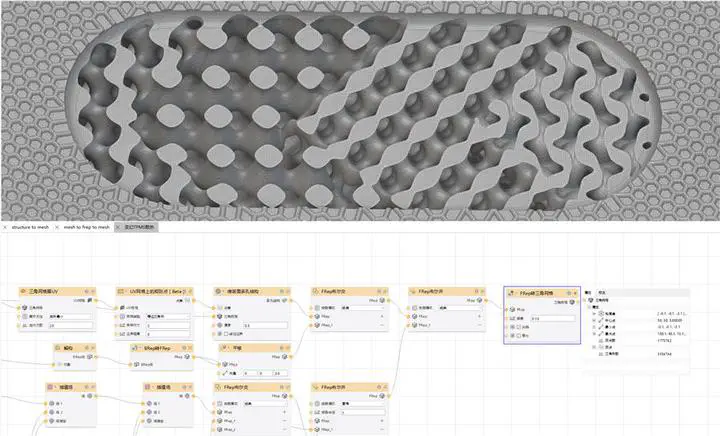

The screenshot shows a production-style visual pipeline where implicit operators and mesh conversion steps are composed as reusable nodes. This makes it easier to experiment with different conversion strategies and expose complex geometry algorithms through controllable engineering tools.

Demo Video

Watch the demo on Bilibili: 3 Voxeldance Design 隐式建模之隐式转成三角网格
